產品簡介
產品型號:YP4000系列通用型壓力傳感器/變送器
公司簡介
淄博佰思通自控儀表有限公司專業設計、制造各類流體控制閥;公司在全體員工的努力和各大經銷商、使用配套單位的大力支持下,有了較大發展。在全國中心城市基本已建立了銷售網點和辦事處,能為你提供售前售后服務。
公司同時授權代理三力信電磁閥、環工變送器、賽爾斯傳感器,美國GC VALVES電磁閥、德國Muesen變送器,臺灣Kimax執行器、電動閥等品牌。
公司機械設備精良、加工工藝先進、檢測手段完備、員工業務素質良好,大專以上學歷占全體員工的80%以上;我們的技術工程師可以為您進行特殊規格和新產品的開發設計、制造,技術咨詢等服務。
“達則兼善天下,實則恒心如一”。公司將始終遵循自主創新和專業服務的方向,持續提升核心競爭力,為客戶創造更大價值。
Zibo Stone Instrument Co.,Ltd. Specializes in designing and manufacturing all kinds of fluid control valves; The company has been developed greatly through the efforts from the staffs and great cooperation form the big distributors and related units. A lot of sales chain stores and offices have been established at the main cities in the whole country basically,which can provide you with services of before-sale and after-sale.
The company also authorized agent Sanlixin Solenoid Valve , Ring for transmitter , Saiersi sensor, the GC VALVES in USA , Muesen transmitter in Germany, Kimax actuators in TaiWan, Electric valve and so on brand.
The company has superior mechanical equipments,advanced processes,complete test methods,well business qualifications, especially technicians and administrative personnel being high education are occupied more than 80% in the staffs.Some specific and new products can be developed made,consulted about the techniques by our company if you have some requests.
“ To benefit all the people in the world,but in reality if perseverance”The company will always follow the independent innovation and professional services direction, continue to improve the core competence ,to create more value for customers.
展開
產品說明
| 產品型號:YP4000系列通用型壓力傳感器/變送器 |
| |

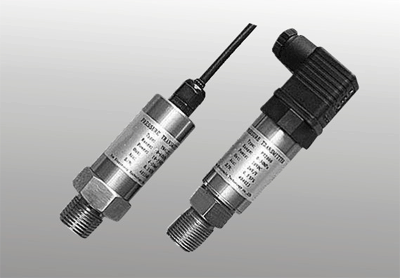

產品圖片:

材質:不銹鋼
|
| |
|
性能特點:
|
|
※ 空氣壓縮、冷凍系統
※ 液壓、氣動檢測控制系統
※ 工業自動化與過程控鑭
※ 樓宇自控、恒壓供水
※ 機車制動系統、熱電機組
※ 石化、環保
※ 輕工、機械、冶金
※ 食品、醫藥
|
| |
| 簡介 |
|
YP4000幕列壓力傳摩器座送器.采用的.高穩定傳感器組件.配接高可靠性電路及補償措施.融合我公司完善的生產工藝精制而成。具有精度高、溫漂小、抗干擾能力強、工作可靠穩定等特點。
該產品有多種接口形式和接線方式.能zui大限度的滿足客戶需要.適用于各種測量控制設備配套使用。
|
| |
| |
|
技術參數:
|
| 量程:-0.1~200MPa |
| 精度:0.1%FS、0.25%FS、0.5%FS、1.0%FS |
| 供電電壓:傳感器+3~+15VDc |
| 變送器+24VDC、+12VDC、+5VDC; |
| 輸出信號:傳感器1.0、1.5、2.0mv/v; |
| 變送器4~20mA(兩線)、0/4~10/20mA(三線)、 |
| 0/0.5/1~4.0/4.5/5.0/10.0V(三/四線); |
| 負載能力:電流型≤500Ω;電壓型≥100KΩ |
| 零點誤差:±0.5%FS; |
| 工作環境:-20℃~70℃,≤85%RH; |
| 儲存環境:-40℃~85℃,≤90%RH; |
| 安全過載能力:150%; |
| 外殼材料:316不銹鋼; |
| 注:除非特別說明,所有參數指標在25℃測取。 |
|
| |
|

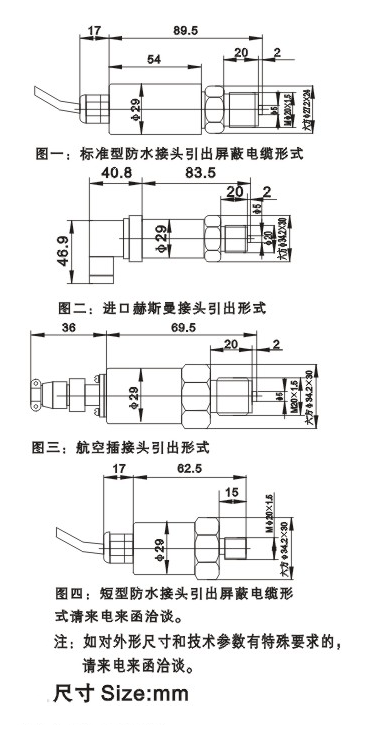

結構圖:
|
|
|
